In the world of industrial manufacturing, alloy steel castings play a pivotal role in creating high-performance components that can withstand extreme conditions, resist wear, and deliver exceptional durability. From aerospace and automotive to oil & gas and heavy machinery, these castings are integral to the functionality and safety of critical systems. But what exactly are alloy steel castings, and why are they so widely used across industries?
This comprehensive guide explores the fundamentals of alloy steel castings, their composition, manufacturing processes, applications, advantages, and key considerations for selection. Whether you're an engineer, procurement specialist, or industry professional, this article will provide valuable insights into one of the most versatile materials in modern manufacturing.
What Are Alloy Steel Castings?
Alloy steel castings are metal components created by pouring molten alloy steel into molds to form specific shapes. Unlike carbon steel, alloy steel contains additional elements such as chromium, nickel, molybdenum, vanadium, or manganese, which are added to enhance its mechanical properties. These elements improve characteristics like strength, hardness, corrosion resistance, and toughness, making alloy steel castings suitable for demanding applications.
The casting process allows for the creation of complex geometries that would be difficult or impossible to achieve through other manufacturing methods like forging or machining. This flexibility, combined with the enhanced properties of alloy steel, makes castings a preferred choice for critical components.
Understanding Alloy Steel
Alloy steel is a type of steel that contains a combination of iron, carbon, and other alloying elements. The specific properties of alloy steel depend on the types and proportions of these elements. Common alloying elements include:
- Chromium: Enhances hardness, corrosion resistance, and wear resistance.
- Nickel: Improves toughness, ductility, and resistance to impact.
- Molybdenum: Increases strength at high temperatures and improves hardenability.
- Vanadium: Enhances strength, toughness, and resistance to fatigue.
- Manganese: Improves hardenability and wear resistance.
By varying the composition, manufacturers can tailor alloy steel to meet specific performance requirements, making it suitable for a wide range of applications.
The Alloy Steel Casting Process
The production of alloy steel castings is a precise and well-organized process involving several key stages, each designed to ensure accuracy, strength, and consistent quality in the final product. From creating the pattern to final finishing, every step contributes to achieving the desired mechanical and dimensional performance.
-
Pattern Making
A detailed pattern is first produced to replicate the shape and dimensions of the finished part. Made from wood, plastic, or metal, the pattern forms the foundation for the mold and directly influences the precision of the casting.
-
Mold Creation
The pattern is used to create a mold, typically from high-grade sand or refractory material. For complex or high-precision components, techniques such as investment casting or ceramic molds are used to achieve finer detail and smoother surfaces.
-
Melting and Pouring
Alloy steel is melted in a furnace at temperatures above 1,500°C (2,700°F). The molten metal is then carefully poured into the mold under controlled conditions to ensure complete filling and minimize defects.
-
Cooling and Solidification
The molten steel cools and solidifies within the mold, gradually forming the required shape. Controlled cooling helps maintain uniform structure and mechanical integrity.
-
Mold Removal and Cleaning
After cooling, the mold is broken away, and the casting is cleaned to remove sand, scale, and any excess material, resulting in a smooth and clean surface.
-
Heat Treatment (Optional)
Depending on application needs, the casting may undergo heat treatment—such as annealing, quenching, or tempering—to improve strength, hardness, and durability.
-

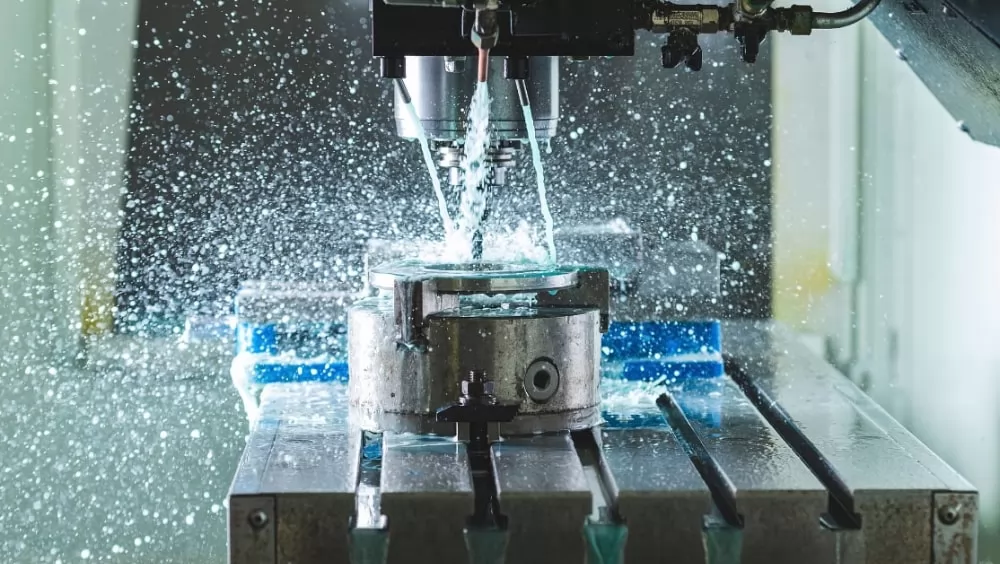

Machining and Finishing
The final step involves machining to achieve exact dimensions and surface finishes. Additional processes like grinding or coating may be applied to enhance appearance and performance.
Types of Alloy Steel Castings
Alloy steel castings can be categorized based on their composition and intended use:
1. Low-Alloy Steel Castings
Contain small amounts of alloying elements (typically less than 5%). Offer improved strength and toughness compared to carbon steel. Commonly used in structural applications, machinery, and automotive components.
2. High-Alloy Steel Castings
Contain higher percentages of alloying elements (often more than 5%). Provide enhanced corrosion resistance, high-temperature performance, and wear resistance. Often used in extreme environments, such as aerospace, chemical processing, and power generation.
3. Stainless Steel Castings
A subset of high-alloy steel castings with at least 10.5% chromium content. Known for their excellent corrosion resistance and are widely used in food processing, medical equipment, and marine applications.
Applications of Alloy Steel Castings
Alloy steel castings are used in a wide range of industries due to their versatility and performance. Some common applications include:
1. Aerospace
Components such as turbine blades, engine casings, and landing gear parts require high strength, heat resistance, and reliability—qualities that alloy steel castings provide.
2. Automotive
Used in critical components like gears, axles, and engine parts that demand durability and performance under stress.
3. Oil & Gas
Alloy steel castings are used in valves, pumps, and drilling equipment that must withstand corrosive environments and high pressures.
4. Heavy Machinery
Components such as crane hooks, mining equipment, and construction machinery benefit from the strength and wear resistance of alloy steel.
5. Power Generation
Turbine components, boiler parts, and other equipment in power plants rely on alloy steel castings for high-temperature performance and durability.
6. Marine and Defense
Used in shipbuilding, submarines, and military equipment where corrosion resistance and strength are critical.
Advantages of Alloy Steel Castings
Alloy steel castings offer a range of benefits that make them a preferred choice for demanding applications:
1. Superior Strength and Durability
The addition of alloying elements enhances the strength and toughness of the steel, allowing it to withstand heavy loads and harsh conditions.
2. Corrosion Resistance
Certain alloying elements, such as chromium and nickel, improve resistance to rust and corrosion, making these castings ideal for harsh environments.
3. Wear Resistance
Alloy steel castings are highly resistant to wear and abrasion, extending the lifespan of components in high-friction applications.
4. Versatility in Design
The casting process allows for the creation of complex shapes and intricate designs that would be difficult to achieve with other manufacturing methods.
5. High-Temperature Performance
Certain alloys maintain their strength and integrity at elevated temperatures, making them suitable for use in engines, turbines, and furnaces.
6. Cost-Effectiveness
While the initial cost may be higher than some materials, the durability and performance of alloy steel castings often result in lower long-term costs due to reduced maintenance and replacement needs.
Key Considerations When Selecting Alloy Steel Castings
When choosing alloy steel castings for your application, consider the following factors:
1. Mechanical Properties
Evaluate the required strength, hardness, toughness, and ductility based on the application.
2. Environmental Conditions
Consider factors such as temperature, pressure, and exposure to corrosive substances.
3. Complexity of Design
Ensure the casting process can accommodate the complexity and precision required for your component.
4. Cost and Budget
Balance the performance benefits of alloy steel with your budget constraints.
5. Supplier Expertise
Work with a reputable supplier who has experience in producing high-quality alloy steel castings and can provide technical support.
Conclusion: The Power of Alloy Steel Castings
Alloy steel castings are a cornerstone of modern manufacturing, offering unmatched strength, durability, and versatility. Their ability to be tailored to specific applications through the use of alloying elements makes them indispensable in industries that demand high performance and reliability.
Whether you're designing components for extreme environments, complex machinery, or critical infrastructure, alloy steel castings provide the solutions you need to succeed. By understanding their properties, applications, and benefits, you can make informed decisions that enhance the quality and efficiency of your projects.
