From propellers and pumps to valves and deck fittings, stainless steel castings are a cornerstone of modern marine engineering. In environments where saltwater, humidity, and temperature variations constantly threaten metal structures, stainless steel stands out as the material of choice for reliability and longevity.
This article explains what gives stainless steel its corrosion resistance, which alloys perform best in seawater, practical design considerations, testing practices, and the main marine applications where stainless steel castings deliver the greatest value.
Why Corrosion Is a Major Challenge in Marine Environments
Marine environments are among the most aggressive corrosion settings in the world. Constant exposure to saltwater (chlorides), oxygen and moisture creates ideal conditions for metal deterioration.
Common corrosion problems in marine settings
- Pitting corrosion: localized attack caused by chloride ions.
- Crevice corrosion: occurs in shielded areas like joints and flanges.
- Galvanic corrosion: when dissimilar metals are coupled in seawater.
- Stress corrosion cracking (SCC): triggered by mechanical stress and chlorides at elevated temperatures.
These forms of corrosion not only weaken components but can also cause leaks, mechanical failure and costly downtime.
How Stainless Steel Resists Corrosion
The secret lies in chromium. When exposed to oxygen, chromium in the alloy forms a thin, self-healing passive oxide layer on the surface. This invisible barrier prevents further oxidation, repairs itself if scratched, and shields the underlying metal from moisture and salt.
Higher chromium — and additions of molybdenum and nickel in certain grades — improve resistance to chloride attack and pitting, which is why alloy selection is critical for marine use.
Best Stainless Steel Grades for Marine Applications
Not all stainless steels are equal for seawater exposure. The following grades are commonly specified for marine castings:
| Grade | Composition Highlights | Key Benefits | Typical Marine Uses |
|---|---|---|---|
| 316 / 316L (Austenitic) | 16–18% Cr, 10–14% Ni, 2–3% Mo | Excellent pitting and crevice corrosion resistance | Pumps, valves, fittings, propeller shafts |
| 2205 Duplex | 22% Cr, 5% Ni, 3% Mo, N | High strength and superior chloride resistance | Offshore platforms, seawater systems |
| 904L | 20% Cr, 25% Ni, 4.5% Mo, Cu | Exceptional resistance in high-chloride environments | Heat exchangers, chemical tanks |
| 17-4 PH (Precipitation Hardening) | Cr–Ni–Cu alloy | High strength with good corrosion resistance | Marine turbine blades, mechanical parts |
Tip: 316L is the industry standard for many marine castings because it balances corrosion resistance and cost effectively.
Advantages of Using Stainless Steel Castings in Marine Applications
Unmatched Corrosion Resistance
Stainless steel’s naturally forming passive oxide film provides exceptional protection against rust, pitting, and seawater corrosion. Even after years of continuous exposure to saltwater and humid marine atmospheres, stainless steel castings maintain their integrity and surface quality. This superior resistance significantly extends the service life of marine equipment compared with carbon steel or other untreated metals.
High Strength and Impact Resistance
Marine components are constantly subjected to dynamic loads, vibrations, and mechanical shocks caused by waves, propulsion systems, and heavy equipment. Stainless steel castings retain their mechanical strength, toughness, and dimensional stability under these extreme conditions. This makes them ideal for deep-sea operations, offshore platforms, and high-performance vessels where reliability and durability are non-negotiable.
Excellent Surface Finish
Investment-cast stainless steel parts feature an exceptionally smooth, non-porous surface that minimizes drag, resists biofouling, and enhances hydrodynamic efficiency. This refined surface quality is especially beneficial for components such as impellers, propellers, and pump housings, where smooth flow and minimal resistance are essential for optimal marine performance.
Low Maintenance and Life-Cycle Cost
While the initial investment in stainless steel may be higher than in conventional metals, its long-term cost-effectiveness is unmatched. The material’s inherent durability, minimal maintenance requirements, and resistance to corrosion-related failures drastically reduce repair frequency and operational downtime — an invaluable advantage for offshore facilities or vessels operating in remote and hard-to-access environments.
Aesthetic and Long-Term Appearance
Beyond performance, stainless steel offers enduring visual appeal. Its polished, reflective surface resists discoloration, staining, and weathering, maintaining a sleek, professional appearance over time. This makes it a preferred material for visible marine structures, luxury yachts, and architectural components where both strength and beauty are essential.

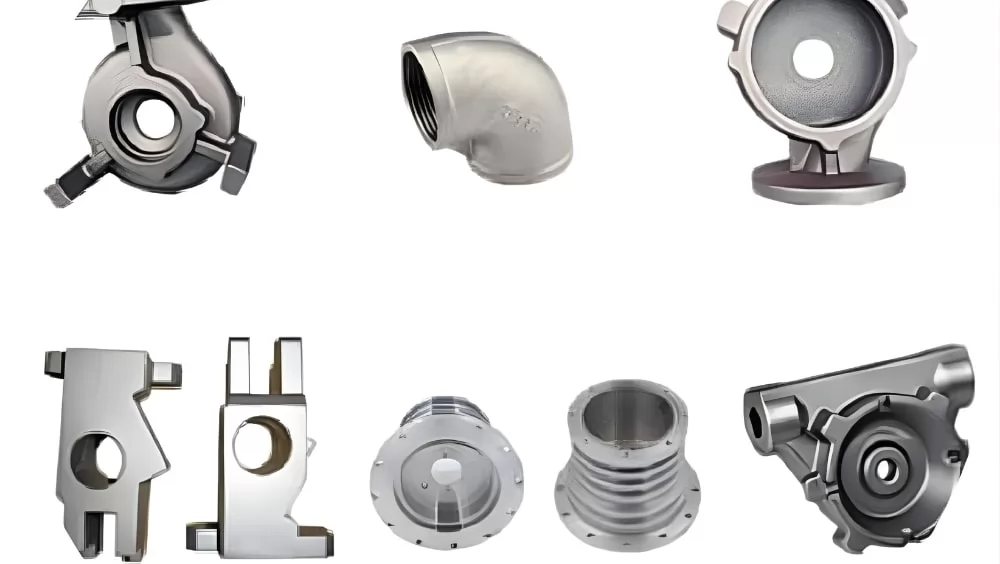

Common Marine Applications of Stainless Steel Castings
Applications include:
- Pump housings and impellers
- Valve bodies and fittings
- Propeller blades and hubs
- Deck and railing components
- Engine and exhaust manifolds
- Offshore platform hardware
Design Considerations for Marine Stainless Steel Castings
Poor design can create crevices or trapped areas that promote corrosion. Follow these practices:
- Avoid sharp corners and tight crevices; ensure smooth transitions
- Design for proper drainage and fluid flow
- Use uniform wall thickness to prevent stress concentration
- Select the right grade for the expected chloride exposure
- Consider passivation or electropolishing for extra protection
Surface treatments such as passivation strengthen the chromium oxide layer and maximize longevity.
Testing and Quality Control in Marine Castings
Marine-grade castings must pass rigorous testing to verify corrosion resistance and mechanical performance:
- Salt spray testing (ASTM B117) for corrosion resistance
- Mechanical testing (tensile, hardness, impact)
- Non-destructive testing (X-ray, ultrasonic, dye penetrant).
- Dimensional verification using coordinate measuring machines (CMM)
Summary Table: Benefits of Stainless Steel in Marine Environments
| Feature | Advantage | Result |
|---|---|---|
| Corrosion Resistance | Chromium oxide passive layer | Protection against seawater and chlorides |
| Strength and Durability | High tensile strength under load | Reliable for deep-sea and offshore use |
| Surface Finish | Smooth, non-porous surface | Prevents biofouling and buildup |
| Low Maintenance | Resists wear and rust without coating | Reduced life-cycle costs |
| Aesthetic Value | Polished appearance and stability | Ideal for luxury marine and architectural use |
Stainless steel excels in marine environments thanks to its unique balance of strength, corrosion resistance, and visual appeal. Its chromium oxide layer protects against seawater and chlorides, ensuring long-lasting performance where other metals fail.
High tensile strength and a smooth, non-porous surface make it ideal for offshore structures and components exposed to dynamic loads and biofouling. With minimal maintenance needs and a polished, durable appearance, stainless steel offers both practicality and elegance for marine and architectural applications.
Conclusion
In the marine world, stainless steel castings offer an excellent balance of corrosion resistance, strength and longevity. Their ability to perform reliably in aggressive saltwater conditions makes them indispensable for shipbuilders, offshore engineers and marine equipment manufacturers.
Choosing the right alloy, design and foundry is essential to get the best long-term performance. At Besser, we specialize in marine-grade stainless steel investment castings engineered for durability, precision and corrosion protection. From design optimization to final inspection, we ensure every component withstands the harshest ocean environments — delivering performance you can trust, voyage after voyage.
Besser — precision casting solutions built to endure the sea.
