Tool steel castings play a critical role in modern manufacturing, offering exceptional hardness, wear resistance, and strength. They are the backbone of precision tools, molds, and dies used across industries such as automotive, aerospace, and heavy machinery. Understanding how these high-performance components are made reveals the science and precision behind every durable casting.
Tool Steel Casting Process Overview
| Step | Process | Description |
|---|---|---|
| 1 | Design and Material Selection | The process begins with detailed design and alloy selection. Engineers choose grades like H13 or D2 based on load, heat, and wear requirements. CAD modeling ensures accuracy before production. |
| 2 | Pattern and Mold Preparation | A pattern replicating the final part is created to form the mold cavity. Sand, ceramic, or investment molds are used depending on precision needs and surface quality. |
| 3 | Melting and Alloying | Raw materials—iron, carbon, and alloying elements like chromium and vanadium—are melted at over 1,500°C. The composition is precisely controlled for consistent quality. |
| 4 | Pouring and Solidification | The molten steel is poured into molds under controlled conditions and slowly cooled to form a strong, uniform structure. |
| 5 | Heat Treatment | Quenching and tempering refine the steel’s microstructure to achieve the desired balance of hardness and toughness. |
| 6 | Machining and Finishing | The casting is machined to precise dimensions and may receive surface treatments like coating or polishing to enhance wear resistance. |
| 7 | Quality Inspection | Final inspection uses visual and non-destructive testing to verify strength, integrity, and dimensional accuracy before delivery. |
1. Design and Material Selection
Every successful tool steel casting project begins with a well-defined design and careful material selection. Engineers assess the part’s intended function, mechanical loads, and temperature conditions to choose the most suitable alloy grade. Tool steels such as H13, D2, and M2 each offer unique benefits—ranging from hot work capability to superior wear resistance. Advanced CAD modeling and simulation help predict metal flow and shrinkage, ensuring dimensional accuracy before production begins.
2. Pattern and Mold Preparation
Once the design is finalized, a pattern replicating the final part’s shape is created using wood, plastic, or metal. This pattern forms the mold cavity that shapes the casting. Depending on precision requirements, sand molds, ceramic molds, or investment casting techniques may be used. Proper mold design ensures smooth metal flow and minimizes defects such as shrinkage or porosity.
3. Melting and Alloying
High-quality raw materials—iron, carbon, and alloying elements like chromium, molybdenum, and vanadium—are melted in a furnace at temperatures above 1,500°C (2,700°F). Each element enhances performance: chromium adds hardness and corrosion resistance, molybdenum improves strength at high temperatures, and vanadium increases wear resistance. The molten steel’s composition is closely monitored to achieve the desired chemistry before pouring.
4. Pouring and Solidification
The molten steel is carefully poured into the mold under controlled conditions. Consistent flow and temperature are essential to avoid turbulence and inclusions. As the metal cools, it solidifies into the desired shape. Controlled cooling rates are used to refine the grain structure, enhance strength, and prevent internal stresses or deformation.
5. Shakeout and Cleaning
After solidification, the mold is broken apart in a process called shakeout. The casting is then cleaned to remove sand, scale, or residue using methods such as shot blasting or grinding. This prepares the surface for inspection and further processing.
6. Heat Treatment
Heat treatment is a crucial step in developing the final mechanical properties of tool steel castings. Processes like quenching and tempering refine the metal’s microstructure to achieve the desired hardness, strength, and toughness. Quenching rapidly cools the steel to increase hardness, while tempering reheats it slightly to relieve internal stresses and enhance ductility.
7. Machining and Finishing

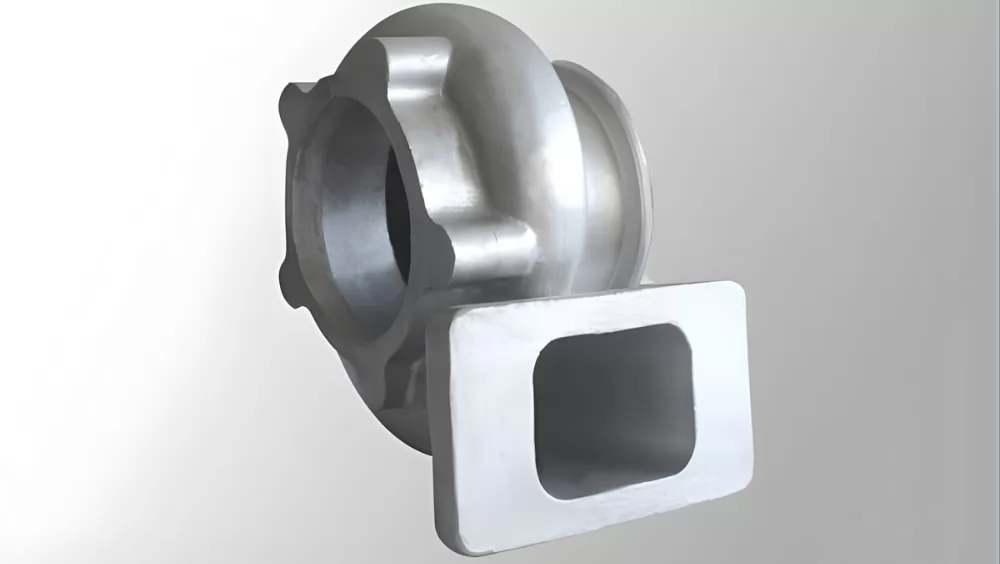

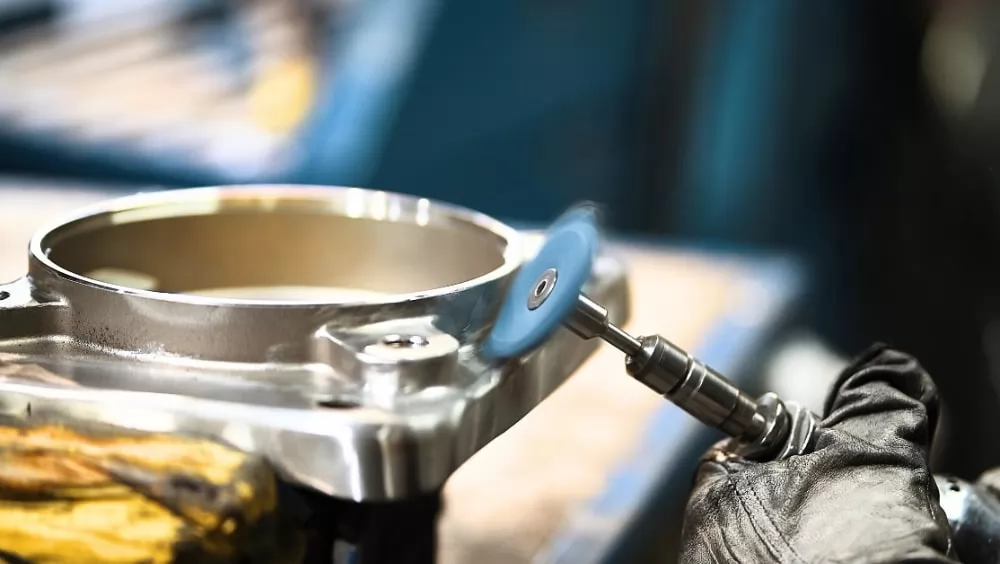

Once heat treatment is complete, precision machining is performed to achieve exact tolerances and surface finishes. Milling, drilling, and grinding shape the component to its final dimensions. Additional finishing processes, such as nitriding, coating, or polishing, may be applied to improve wear resistance and extend tool life.
8. Quality Inspection and Testing
Before delivery, each casting undergoes thorough inspection using both visual and non-destructive testing methods, including ultrasonic, magnetic particle, and X-ray examination. Mechanical testing—such as hardness, tensile, and impact tests—verifies that the casting meets required specifications and quality
Applications of Tool Steel Castings
Tool steel castings are indispensable key components in numerous industrial sectors due to their excellent hardness, wear resistance, and strength. Here are their main application areas:
1. Molds and Forming
This is the core application area for tool steel castings, used to create tools for mass-producing other products.
- Plastic Injection Molds: Used to produce various plastic products, from automotive interiors to daily necessities.
- Die Casting Dies: Used for manufacturing automotive parts, electronic housings, etc., made from alloys like aluminum and zinc.
- Glass Manufacturing Molds: Capable of withstanding the extreme temperatures and thermal shock of molten glass.
2. Forging and Stamping
In these high-impact processes, tool steel dies are used to shape the metal itself.
- Forging Dies: Used to create high-strength metal components like engine connecting rods and gears.
- Stamping Dies: Used in the automotive industry to stamp steel plates into complex shapes like doors and body panels.
3. Wear-Resistant Parts
In mining, construction, and heavy machinery, tool steel castings significantly extend equipment service life with their exceptional wear resistance.
- Typical applications include: Crusher Rolls, Bucket Teeth, Liner Plates, Drill Bits, etc.
4. Automotive and Aerospace
These high-end manufacturing industries rely on the reliability and high performance of tool steel.
- Beyond molds, they are also used for components in high-performance engines and transmission systems, as well as specialized jigs and fixtures used in the production process.
Core Advantages
Choosing casting over forging or machining lies in its ability to economically produce large, complex-shaped components with isotropic and uniform properties, making it a durable cornerstone of modern manufacturing.
Advantages of Using Tool Steel Castings
1. Exceptional Hardness and Wear Resistance
Tool steel castings offer outstanding hardness due to their high carbon and alloy content. This makes them ideal for components that endure constant friction, pressure, or cutting action. The excellent wear resistance significantly extends the lifespan of tools and molds.
2. High Strength and Dimensional Stability
Even under extreme loads or temperature fluctuations, tool steel castings maintain superior structural integrity. Controlled heat treatment ensures dimensional accuracy and stability, essential for precision tooling applications.
3. Excellent Heat and Temperature Resistance
Tool steels—especially hot-work and high-speed grades—retain their hardness and mechanical strength even at high operating temperatures. This makes them suitable for hot forging, extrusion, and high-speed cutting processes where other materials soften or deform.
4. Superior Toughness and Impact Strength
Despite their hardness, tool steel castings are designed to resist cracking or breaking under impact. This balance of strength and toughness ensures reliable performance in demanding conditions such as stamping or heavy forming operations.
5. Precision and Design Flexibility
Casting allows for complex shapes and detailed geometries with minimal machining. Engineers can design intricate components while maintaining tight tolerances, saving both production time and material costs.
6. Extended Service Life and Reduced Maintenance
Because tool steel castings resist wear, heat, and deformation, they require less frequent replacement or repair. This leads to longer service intervals, higher uptime, and overall cost savings across the product lifecycle.
7. Adaptability Through Heat Treatment
Tool steels respond exceptionally well to various heat treatment processes. By adjusting hardness, toughness, and ductility, manufacturers can fine-tune each casting to meet specific operational requirements.
8. Cost Efficiency Over Time
Although tool steel may have a higher initial cost compared to softer alloys, its superior performance and longevity make it more economical in the long run. Reduced downtime, fewer replacements, and consistent performance contribute to a lower total cost of ownership.
9. Versatile Applications Across Industries
From automotive dies and aerospace tooling to industrial molds and oilfield equipment, tool steel castings are used wherever precision, strength, and endurance are required. Their adaptability makes them a cornerstone material for modern engineering.
Comparing Tool Steel Castings and Forgings
Both tool steel castings and forgings are widely used in manufacturing high-performance components. While they share similar materials, the difference in processing creates distinct mechanical and cost characteristics. Understanding these helps in choosing the right solution for each application.
| Aspect | Tool Steel Castings | Tool Steel Forgings |
|---|---|---|
| Manufacturing Process | Molten metal poured into molds for complex shapes. | Heated solid metal shaped under pressure. |
| Strength & Toughness | High strength after heat treatment, moderate toughness. | Superior toughness and fatigue resistance. |
| Design Flexibility | Ideal for complex geometries and near-net shapes. | Best for simple, high-stress parts. |
| Surface Finish | Smooth surface achievable directly from mold. | Requires machining and polishing. |
| Cost & Efficiency | More economical for low-to-medium production volumes. | Efficient for high-volume, high-strength components. |
In summary: Castings excel in shape complexity, dimensional precision, and cost efficiency, while forgings provide superior strength and impact resistance. The choice depends on whether design complexity or mechanical endurance is your top priority.
Besser offers high-quality tool steel castings that balance precision, durability, and value — engineered to perform reliably in demanding industrial applications.
Conclusion
The tool steel casting process is far more than just pouring molten metal into a mold — it’s a precise, multi-stage journey that blends material science, engineering expertise, and advanced manufacturing control. Each phase, from alloy selection and mold creation to heat treatment and surface finishing, determines the performance and lifespan of the final part.
For companies seeking dependable, high-precision tool steel castings, choosing the right manufacturing partner is essential. Besser combines technical know-how, rigorous quality control, and tailored service to deliver castings that meet the most demanding specifications. From design to delivery, Besser ensures your components perform flawlessly where strength and accuracy matter most.
