Investment casting, often referred to as lost-wax casting, is a fascinating process that has stood the test of time. From intricate jewelry to critical aerospace components, this technique allows manufacturers to create complex metal parts with unmatched precision. Understanding each step not only helps engineers and designers optimize their projects but also reveals the ingenuity behind centuries-old craftsmanship meeting modern technology.
Have you ever wondered how a small wax model transforms into a durable, high-performance metal component? The step-by-step investment casting process is both an art and a science. By examining each phase—from wax pattern creation to final finishing—you’ll gain insight into why this method remains a cornerstone of precision manufacturing today.
Table of Contents
- Why Choose Investment Casting?
- Step-by-Step Investment Casting Process
- Applications of Investment Casting
- Tips for Successful Investment Casting
- FAQs – Investment Casting
- Conclusion
Why Choose Investment Casting?
Before diving into the process, it’s important to understand its advantages:
- High Precision: Produces intricate shapes with tight tolerances, ideal for parts that demand accuracy and repeatability.
- Material Versatility: Works with steel, aluminum, bronze, and superalloys—so you can choose the best material for the application.
- Surface Quality: Delivers smooth finishes that reduce or even eliminate secondary machining or polishing.
- Design Flexibility: Enables thin walls, internal cavities, and highly complex geometries that are difficult or uneconomical with other methods.
- Efficiency & Cost Savings: Minimizes material waste versus machining from solid stock and can shorten production cycles for complex parts.
Step-by-Step Investment Casting Process
| Step | Description |
|---|---|
| Wax Pattern | Create wax replica of the final part |
| Wax Tree Assembly | Attach multiple wax patterns to a sprue |
| Ceramic Shell | Dip and coat wax tree to form strong mold |
| Wax Removal | Melt out wax, leaving ceramic cavity |
| Mold Preheating | Heat ceramic mold to prepare for metal pouring |
| Metal Pouring | Fill mold with molten metal |
| Shell Removal | Break off ceramic to reveal metal casting |
| Finishing | Cut, machine, and polish for final product |
1. Creating the Wax Pattern
The process begins with producing a wax model of the desired part. These wax patterns are usually made by injecting molten wax into precision metal dies, ensuring consistency, dimensional accuracy, and the ability to reproduce intricate details. For complex parts, multiple wax segments may be assembled together.
2. Building the Wax Tree
Once the patterns are prepared, they are attached to a central wax sprue (runner system), forming what’s known as a “wax tree.” This setup allows multiple components to be cast in a single batch, improving efficiency and reducing production costs.
3. Shell Building
The wax tree is repeatedly dipped into a ceramic slurry and coated with fine refractory sand. Each layer is dried before the next is applied, gradually forming a strong, heat-resistant ceramic shell around the wax patterns. Depending on the size and complexity, this stage may involve 6–12 coatings.
4. Wax Removal
After the shell is fully cured, the entire wax tree is placed in an autoclave or furnace. Heat and pressure melt out the wax, leaving behind a precise hollow cavity inside the ceramic shell—an exact negative of the final part.
5. Mold Preheating
Before casting, the ceramic mold is heated to eliminate any residual wax and to prepare it for metal pouring. Preheating reduces the risk of thermal shock and ensures proper metal flow into intricate details.

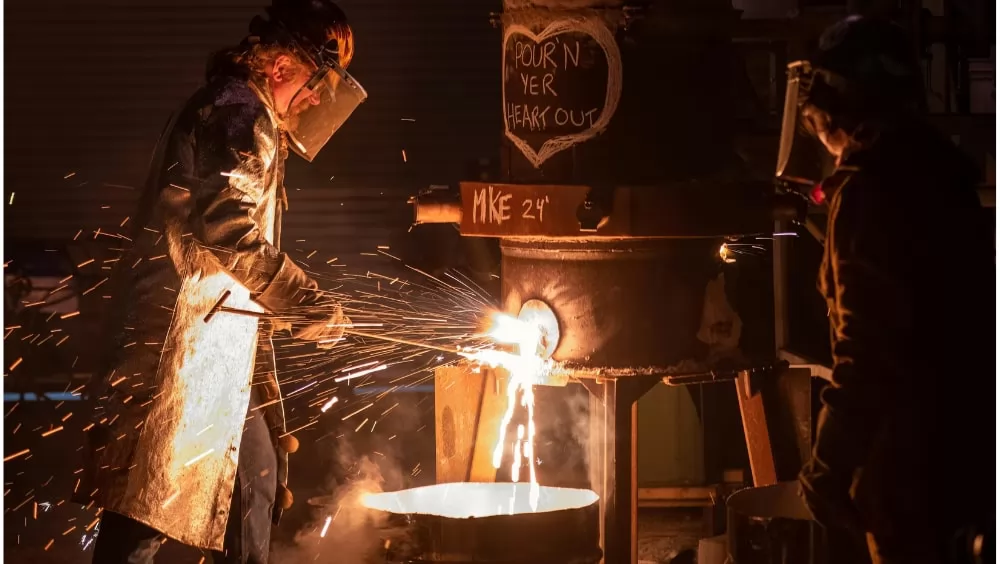

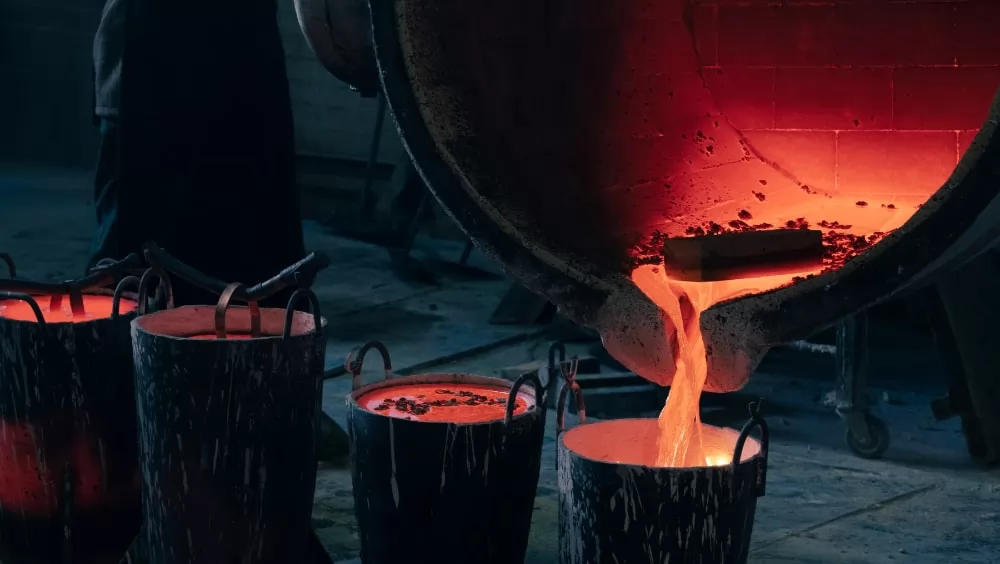

6. Pouring the Molten Metal
The selected metal alloy is melted in a furnace and carefully poured into the preheated ceramic mold. Because the ceramic shell can withstand very high temperatures, investment casting works with steels, superalloys, and other metals with high melting points.
7. Cooling and Shell Removal
After pouring, the mold is allowed to cool until the metal solidifies. The ceramic shell is then mechanically broken away or blasted off, exposing the castings.
8. Cutting and Finishing
The individual parts are cut from the central sprue system. Post-processing may include grinding, machining, heat treatment, or surface finishing, depending on the final specifications. At this stage, the components achieve their required dimensions and properties.
Applications of Investment Casting
- Aerospace: Used to manufacture turbine blades, structural components, and jet engine parts that demand tight tolerances and the ability to withstand extreme temperatures. Investment casting ensures lightweight yet durable components essential for flight safety and efficiency.

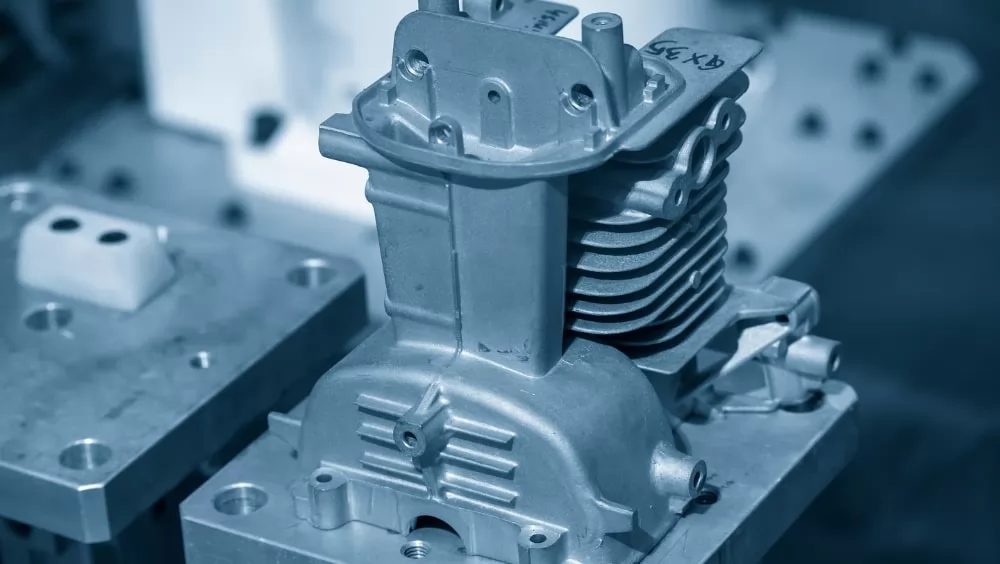

- Automotive: Produces gears, brackets, exhaust manifolds, and other performance-critical components. The process supports complex geometries and high-strength alloys, contributing to both passenger and high-performance vehicles.
- Medical: Enables the production of surgical instruments, dental tools, orthopedic implants, and prosthetics with biocompatible materials. Its precision and smooth surface finish are crucial for applications where hygiene and safety are paramount.
- Industrial & Energy: Applied in valves, pumps, impellers, and turbine components for power generation, oil & gas, and chemical processing. These parts often require corrosion resistance, wear resistance, and long service life under demanding environments.
- Defense & Military: Utilized for firearm components, missile parts, and military-grade hardware where reliability and precision are critical in extreme conditions.
- Art & Jewelry: Also employed in creating fine jewelry, sculptures, and decorative items, thanks to its ability to replicate intricate designs and delicate details.
Tips for Successful Investment Casting
Use high-quality wax patterns
Ensure the wax replicas are free of bubbles, cracks, or surface imperfections. Defects in the wax pattern often translate directly to the final casting, so precision at this stage is critical.
Maintain proper ceramic coating thickness
Apply consistent layers of ceramic slurry and refractory sand. Too thin a shell may crack during metal pouring, while too thick can lead to poor metal flow and longer production times.
Preheat molds consistently
Gradually heat the ceramic molds to remove residual moisture and prevent thermal shock. Consistent preheating helps reduce casting defects like cracks, porosity, or incomplete filling.
Select appropriate alloys
Choose metals that meet the mechanical, thermal, and chemical performance requirements of the final component. Consider factors such as shrinkage, fluidity, and compatibility with the ceramic mold.
Control pouring techniques
Pour molten metal steadily and at the right temperature to avoid turbulence or cold shuts. Proper pouring reduces the risk of voids, inclusions, or incomplete castings.
Plan for post-casting processes
Anticipate machining, heat treatment, or surface finishing steps to achieve final specifications. Designing the casting with these processes in mind improves overall efficiency and quality.
FAQs – Investment Casting
Q1: What is investment casting and why is it used?
A1: Investment casting, or lost-wax casting, is a precision metal casting process used to produce complex shapes with tight tolerances. It’s chosen for high-quality, detailed parts in aerospace, automotive, and medical industries.
Q2: What materials can be used in investment casting?
A2: Common materials include stainless steel, aluminum, bronze, and superalloys. The process is versatile, allowing metals with different melting points and mechanical properties to be cast accurately for specialized applications.
Q3: How long does the investment casting process take?
A3: Timing depends on complexity, size, and batch quantity. Wax pattern creation, ceramic shell building, metal pouring, cooling, and finishing can take several days to a few weeks, especially for large or intricate parts.
Q4: How precise is investment casting?
A4: Investment casting achieves excellent dimensional accuracy, often within ±0.1–0.5 mm. Thin walls, complex internal geometries, and fine surface finishes are possible, minimizing post-processing and machining.
Q5: What are common defects in investment casting?
A5: Typical issues include porosity, incomplete filling, surface cracks, or distortion. Proper wax patterns, mold preparation, preheating, and controlled metal pouring can significantly reduce these defects.
Conclusion
Investment casting is more than a production method; it’s a way to achieve precision, reliability, and efficiency in manufacturing. By carefully managing each step, from wax modeling to ceramic shell creation, preheating, metal pouring, and finishing, manufacturers can produce parts with exceptional accuracy and minimal material waste.
For companies seeking consistency, quality, and technical support in investment casting, Besser is a trusted partner. With advanced equipment and expertise, Besser ensures high-performance castings that meet the rigorous demands of industries such as aerospace, automotive, and industrial machinery, helping your designs move from concept to reality seamlessly.
