Quality inspection is the cornerstone of reliable carbon steel casting production. Whether you're a manufacturer, purchaser, or engineer, understanding how to properly inspect carbon steel castings ensures structural integrity, performance reliability, and cost-effectiveness. This comprehensive guide walks you through the essential methods and techniques for identifying defects and verifying quality in carbon steel castings.
Inspection Methods for Carbon Steel Castings — Table of Contents
- Visual Inspection: The First Line of Defense
- Dimensional Inspection: Ensuring Precision Fit
- Liquid Penetrant Testing: Revealing Surface Flaws
- Magnetic Particle Inspection: For Ferromagnetic Materials
- Ultrasonic Testing: Deep Flaw Detection
- Radiographic Testing: Internal Structure Visualization
- Metallurgical Testing: Material Property Verification
- Pressure Testing: For Sealed Components
Visual Inspection: The First Line of Defense

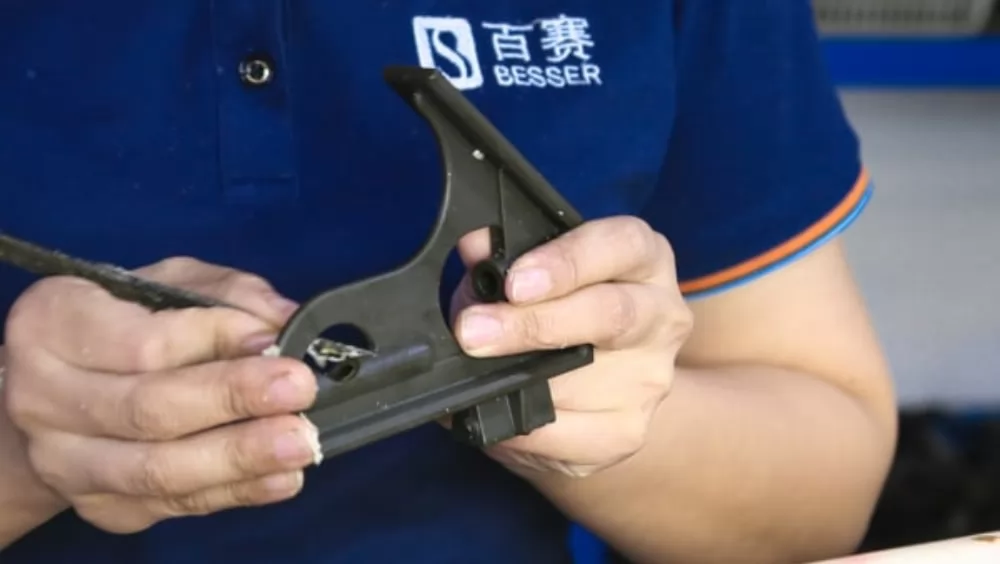

Visual examination remains the most fundamental and widely used inspection method for carbon steel castings. Conducted with the naked eye or with magnifying tools, this initial assessment can identify surface defects that may indicate deeper issues.
Key elements to examine: Surface cracks, shrinkage cavities, gas holes, and cold shuts. Inspectors should also check for proper filling of mold cavities and overall surface finish quality. Good lighting and clean casting surfaces are essential for effective visual inspection of carbon steel components.
Dimensional Inspection: Ensuring Precision Fit
Verifying that carbon steel castings meet specified dimensional tolerances is crucial for proper assembly and function. This process involves using various measuring instruments to check critical dimensions against engineering drawings.
Common tools include: Calipers, micrometers, coordinate measuring machines (CMM), and optical comparators. Special attention should be paid to mating surfaces, mounting points, and critical functional dimensions where even minor deviations could affect performance.
Liquid Penetrant Testing: Revealing Surface Flaws
Liquid penetrant testing (LPT) is a non-destructive method that detects surface-breaking defects in carbon steel castings. This sensitive technique can find cracks, porosity, and other discontinuities invisible to the naked eye.
The process involves: Applying a colored or fluorescent penetrant, allowing it to seep into surface defects, removing excess penetrant, and applying a developer that draws the penetrant out of defects, making them visible for evaluation.
Magnetic Particle Inspection: For Ferromagnetic Materials
Magnetic particle inspection (MPI) is particularly effective for carbon steel castings due to their ferromagnetic properties. This method can detect both surface and slightly subsurface defects.
Implementation steps: The casting is magnetized, then iron particles (dry or suspended in liquid) are applied. Defects create magnetic flux leakage fields that attract the particles, forming visible indications of flaws such as cracks and inclusions.
Ultrasonic Testing: Deep Flaw Detection
Ultrasonic testing (UT) uses high-frequency sound waves to detect internal defects in carbon steel castings. This method provides detailed information about flaw size, orientation, and location.
Key advantages: Can detect subsurface defects, measure wall thickness, and characterize internal structures. UT is especially valuable for critical applications where internal integrity is paramount, such as pressure-containing components.
Radiographic Testing: Internal Structure Visualization
Radiographic testing (RT) uses X-rays or gamma rays to examine the internal structure of carbon steel castings. This method produces images that reveal internal defects like shrinkage, porosity, and inclusions.
Application considerations: While highly effective, RT requires radiation safety measures and specialized equipment. It's typically used for complex castings where internal quality verification is essential for performance and safety.
Metallurgical Testing: Material Property Verification
Metallurgical examination confirms that carbon steel castings meet specified material properties and microstructural requirements.
Testing methods include: Chemical analysis using spectrometry, tensile testing for mechanical properties, hardness testing, and microscopic examination of grain structure and phase distribution.
Pressure Testing: For Sealed Components

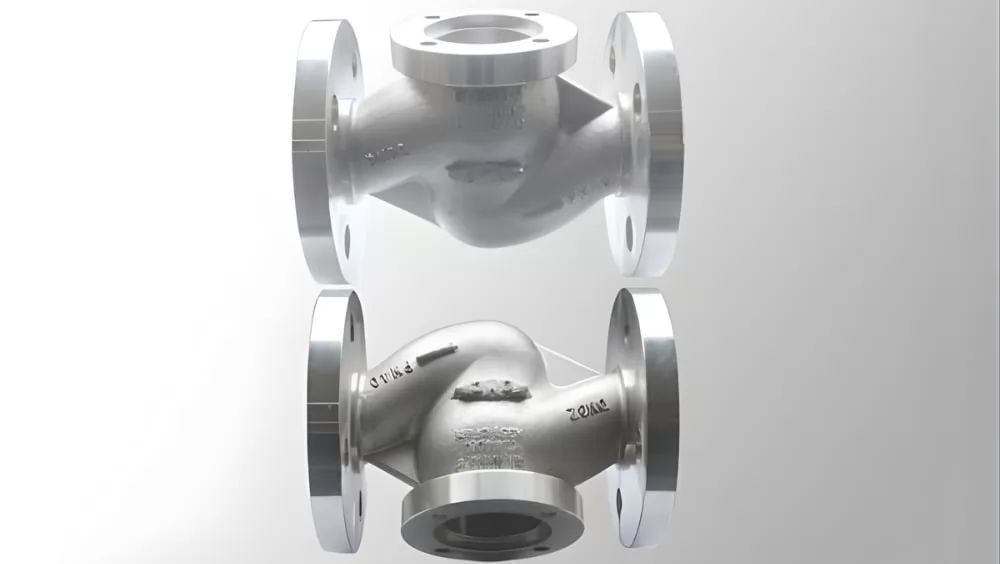

Pressure testing verifies the leak-tight integrity of carbon steel castings designed to contain fluids or gases. This is crucial for valves, pumps, and pressure vessel components.
Common approaches: Hydrostatic testing using water or pneumatic testing using air or inert gases. The casting is pressurized and monitored for pressure drop or visual leakage indications.
Common Defects in Carbon Steel Castings
Understanding typical casting defects helps inspectors recognize and categorize issues accurately:
Gas Porosity
Spherical or elongated cavities caused by trapped gases during solidification. Appears as shiny, round holes on fracture surfaces or radiographic images.
Shrinkage Cavities
Irregularly shaped voids resulting from inadequate feeding during solidification. Typically located in hot spots or heavy sections of the casting.
Sand Inclusions
Non-metallic materials embedded in the casting surface, resulting from mold or core erosion during pouring.
Cold Shuts
Visible lines on the casting surface where molten metal streams failed to fuse properly, often due to low pouring temperature or slow filling.
Cracks
Hot tears or cold cracks caused by stress during or after solidification, often related to design issues or improper cooling.
Creating an Effective Inspection Plan for Carbon Steel Castings
Developing a detailed and consistent inspection plan is vital to maintaining high-quality carbon steel castings. A well-defined inspection strategy not only ensures that each component meets mechanical and dimensional standards but also improves reliability, reduces rework, and enhances long-term product performance.
Risk-Based Approach
An effective carbon steel casting inspection process starts with a risk-based approach. Inspection resources should be focused on the most critical or high-stress components. Castings used in demanding environments—such as heavy machinery or pressure systems—require more rigorous testing like non-destructive examination (NDE), while less critical parts may rely on standard checks to balance quality and cost.
Sampling Strategies
Establishing clear sampling methods ensures consistent carbon steel casting quality. Sampling frequency should be based on production volume, past quality data, and part application. Using statistical process control (SPC) allows for smarter sampling decisions, helping identify trends and potential issues before they affect production.
Documentation and Traceability
Accurate recordkeeping supports strong quality assurance in carbon steel casting production. Inspection reports, test results, and corrective actions must be well-documented to ensure traceability and accountability. This process promotes continuous improvement and guarantees that every carbon steel casting meets performance and reliability standards.
Advanced Inspection Technologies
Modern inspection methods are revolutionizing quality control in carbon steel casting:
Digital Radiography
Provides immediate digital images with enhanced contrast and manipulation capabilities compared to traditional film radiography.
Phased Array Ultrasonics
Uses multiple element arrays to steer and focus ultrasound beams, providing detailed cross-sectional views of internal structures.
Computed Tomography (CT Scanning)
Creates detailed 3D models of internal and external features, allowing virtual dissection and precise measurement of internal defects.
Implementing Continuous Improvement
Effective inspection programs feed data back into the manufacturing process:
Defect Analysis
Systematically categorize and analyze defects to identify root causes and implement preventive measures.
Supplier Quality Management
Work collaboratively with foundries to address recurring issues and improve process capabilities.
Technology Integration
Incorporate automated inspection systems and data analytics to enhance detection capabilities and reduce human error.
Conclusion: Building Quality Through Comprehensive Inspection
Thorough inspection of carbon steel castings is not just about finding defects—it's about ensuring reliability, safety, and performance. By implementing a structured approach that combines multiple inspection methods, manufacturers and purchasers can confidently verify casting quality. Remember that the most effective inspection strategy begins early in the design process and continues through final quality verification. As inspection technologies advance, the ability to detect and prevent defects in carbon steel castings continues to improve, supporting the production of higher quality components across all industries.
