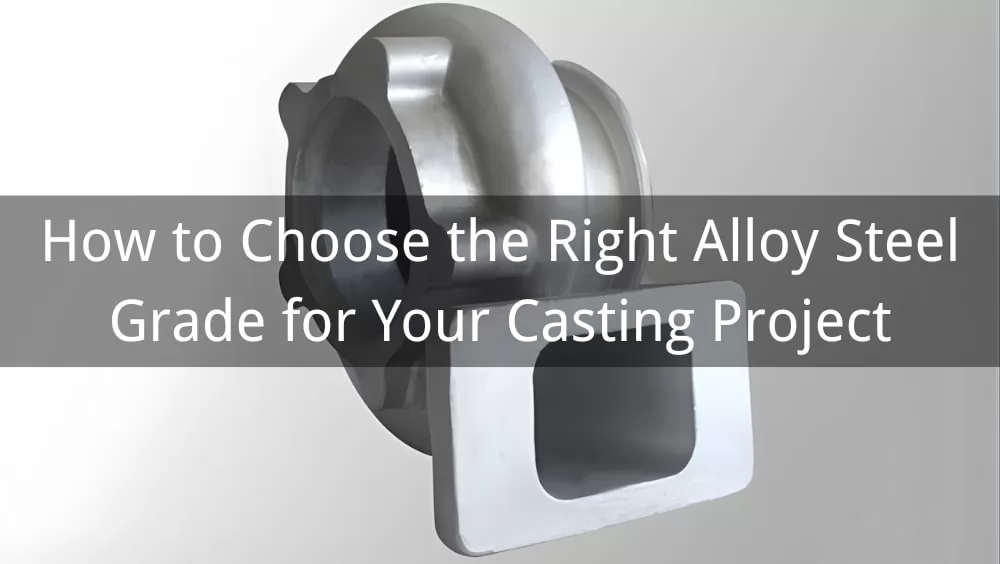

Selecting the appropriate alloy steel grade is a critical decision that directly impacts the performance, durability, and cost-effectiveness of your casting project. With dozens of alloy steel grades available—each engineered for specific mechanical properties and applications—making the right choice requires a deep understanding of your project requirements, material characteristics, and industry standards.
This comprehensive guide will walk you through the essential factors to consider when choosing an alloy steel grade for casting, the most common grades and their applications, and practical tips to ensure you select the optimal material for your needs.
Why Alloy Steel Grade Selection Matters
Alloy steel grades are differentiated by their chemical composition, particularly the types and amounts of alloying elements added to carbon steel. These elements—such as chromium, nickel, molybdenum, and vanadium—are carefully selected to enhance specific properties like strength, hardness, corrosion resistance, and wear resistance.
The right alloy steel grade ensures your casting can withstand the operational demands of its environment, whether that means enduring high temperatures, resisting corrosion, or maintaining strength under heavy loads. Choosing incorrectly can lead to premature failure, increased maintenance costs, and safety risks.
Key Factors to Consider When Choosing an Alloy Steel Grade
1. Mechanical Properties Requirements
Start by identifying the mechanical properties your component must have:
- Strength: Tensile strength, yield strength, and impact resistance requirements.
- Hardness: Necessary for wear resistance and durability.
- Toughness: Ability to absorb energy without fracturing.
- Ductility: Important for components that require forming or bending.
Different alloy steel grades excel in different areas. For example, grades with higher molybdenum content offer superior strength at elevated temperatures, while those with more chromium provide excellent corrosion resistance.
2. Operating Environment
Consider the environment in which the casting will operate:
- Temperature: High-temperature environments require grades with good thermal stability, such as those containing chromium and molybdenum.
- Corrosion: If the component will be exposed to moisture, chemicals, or salt, choose a grade with high chromium content (e.g., stainless steel grades).
- Wear and Abrasion: For components subjected to friction or impact, select grades with high hardness and wear resistance.
3. Casting Method
The casting process you plan to use can influence your choice of alloy steel grade:
- Investment Casting: Suitable for complex geometries and high-precision components; works well with a wide range of alloy grades.
- Sand Casting: More forgiving for larger components; compatible with grades that have good fluidity and casting properties.
- Die Casting: Typically used for smaller, high-volume parts; requires grades with good melt flow and minimal shrinkage.
Some alloy grades are more challenging to cast due to their high melting points or susceptibility to defects like porosity. Work with your foundry to ensure the chosen grade is suitable for your casting method.
4. Post-Casting Processes
Consider whether the casting will undergo additional processes after casting:
- Heat Treatment: Some grades respond better to heat treatments like quenching and tempering, which can enhance strength and hardness.
- Machining: Grades with higher machinability (e.g., those with sulfur additions) are easier to machine after casting.
- Surface Finishing: If the component requires coatings or plating, ensure the alloy steel grade is compatible with these processes.
5. Industry Standards and Regulations
Certain industries have specific requirements for material properties and certifications. For example:
- Aerospace: Requires high-strength, lightweight alloys with excellent fatigue resistance.
- Oil & Gas: Needs corrosion-resistant grades for use in harsh environments.
- Automotive: Focuses on a balance of strength, weight, and cost-effectiveness.
Ensure the alloy steel grade you select complies with relevant industry standards, such as ASTM, AISI, or DIN.
6. Cost and Availability
While performance is paramount, cost and material availability are also important considerations:
- Cost: High-alloy grades with specialized properties are often more expensive. Balance performance needs with budget constraints.
- Availability: Ensure the chosen grade is readily available from your supplier to avoid delays in production.
Common Alloy Steel Grades for Casting and Their Applications
1. AISI 4130 (Chrome-Moly Steel)
Properties: Good strength-to-weight ratio, excellent weldability, and moderate corrosion resistance.
Applications: Aerospace components, automotive parts, and oilfield equipment.
2. AISI 4140
Properties: High strength, toughness, and wear resistance.
Applications: Gears, shafts, and structural components in heavy machinery.
3. AISI 8620 (Nickel-Chromium-Molybdenum Steel)
Properties: Excellent case-hardening ability, good core strength, and machinability.
Applications: Bearings, gears, and automotive components.
4. Stainless Steel Grades (e.g., 304, 316, 17-4 PH)
Properties: High corrosion resistance, excellent durability, and strength.
Applications: Marine components, food processing equipment, and medical devices.
5. AISI 4340
Properties: Very high strength, toughness, and fatigue resistance.
Applications: Aerospace components, heavy-duty gears, and crankshafts.
Practical Tips for Choosing the Right Alloy Steel Grade
-
Define Your Project Requirements Clearly
Begin by clearly outlining your component’s purpose and working conditions. Include details such as load capacity, environmental exposure, operating temperature, and expected service life. A well-defined set of requirements helps narrow down the most suitable alloy steel grade.
-
Consult with Material Experts
Work closely with your alloy steel supplier or a qualified materials engineer. Their expertise can help you understand the differences between alloy grades and select one that best matches your technical and budgetary needs.
-
Test and Prototype
Whenever possible, create small prototypes or conduct sample testing using different alloy grades. Real-world testing provides valuable insight into strength, durability, and performance before full-scale production begins.
-
Consider Future Maintenance
Choose a grade that not only meets your current performance requirements but also minimizes maintenance and extends service life. Alloys with good corrosion and wear resistance often prove more cost-effective in the long run.
-
Balance Performance and Cost
Higher-grade alloys may offer superior properties, but they aren’t always necessary. Aim for a practical balance between performance, cost, and availability to ensure reliability without overspending.
Conclusion: Making the Right Choice for Success
Selecting the right alloy steel grade for your casting project is a decision that requires careful analysis of your project’s unique requirements, the operating environment, and the properties of available materials. By understanding the characteristics of different alloy steel grades and working closely with experienced professionals, you can ensure your casting meets—or exceeds—performance expectations.
Remember, the right alloy steel grade not only enhances the quality and durability of your component but also contributes to the overall success and efficiency of your project. Take the time to make an informed decision, and you’ll reap the benefits of a stronger, more reliable end product.
