This intricate production method shapes raw metal into essential automotive components that determine a car’s strength, reliability, and efficiency. From precision mold design to the final inspection before shipment, each stage in the casting process contributes to the finished part’s performance and longevity.
1. Understanding Auto Parts Casting
Auto parts casting involves pouring molten metal into molds to form complex and durable shapes. This enables manufacturers to produce components such as engine blocks, transmission housings, brackets, and wheel hubs with high precision and repeatability.
Common casting methods include:
- Sand Casting: Versatile for complex shapes and smaller production runs.
- Die Casting: Ideal for high-volume parts with excellent surface finish.
- Investment Casting: Best for precision components requiring tight tolerances.
2. Step-by-Step Casting Production Process
Design & Material Selection
Projects begin with 3D design and simulation to optimize geometry and material use. Engineers select alloys (e.g., aluminum, steel, iron) according to strength, weight, and thermal requirements.
Mold Making
The mold determines final shape and surface quality. Molds may be made from sand, ceramic, or steel and must be produced with precision to achieve required tolerances.
Melting & Pouring
Metals are melted under tightly controlled conditions to preserve purity. Molten metal is then poured into molds, ensuring complete filling of intricate cavities.
Cooling & Solidification
As the metal cools it solidifies into a strong, stable form. Cooling time depends on material and section thickness and directly affects mechanical properties.
Shakeout & Cleaning
After solidification the casting is removed from the mold. The part is cleaned—shot blasted, sand removed, or otherwise processed—to reveal the finished surface.
Machining & Finishing
Precision machining brings parts to final dimensions. Surface finishing (polishing, coatings) improves wear resistance and corrosion protection.
Inspection & Quality Control
Each part undergoes inspection using X-ray, ultrasonic testing, and coordinate measuring machines (CMM) to verify structural integrity and dimensional accuracy before shipment.
3. Common Auto Parts Made by Casting
In the modern automotive industry, metal casting serves as the backbone of component manufacturing, enabling the creation of durable, complex, and high-performance parts that power every vehicle on the road. By precisely controlling the flow, cooling, and solidification of molten metal, this process delivers exceptional structural integrity and design flexibility—qualities that other manufacturing methods often struggle to achieve.

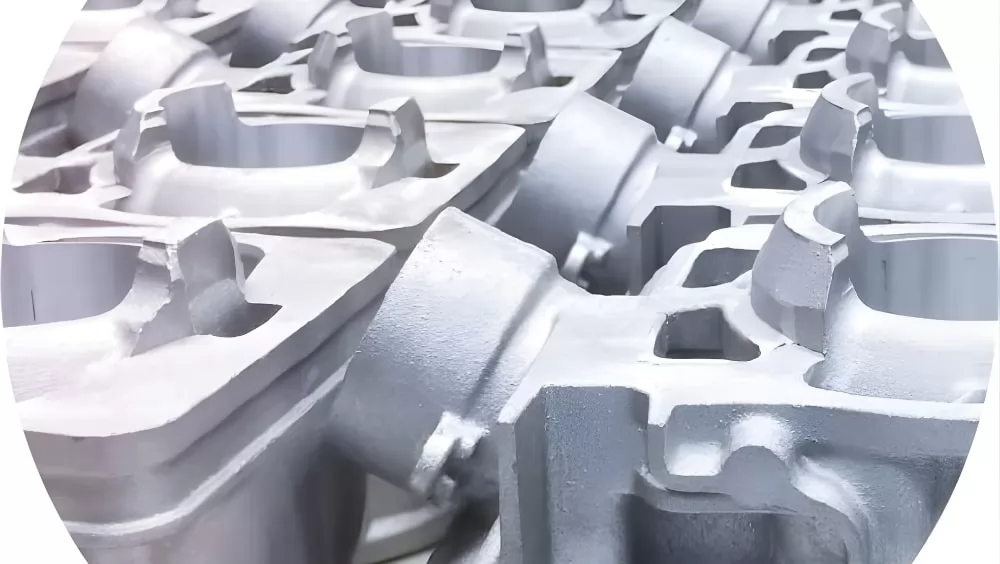

1. Engine Blocks and Cylinder Heads
Often referred to as the heart of the vehicle, these components house combustion and endure immense pressure and heat. Casting allows them to maintain excellent thermal stability, precision, and mechanical strength under the most demanding operating conditions.
2. Gearbox and Transmission Cases
These housings support and align gears, shafts, and bearings within the drivetrain. Through casting, manufacturers achieve rigid yet lightweight structures that ensure smooth power transfer and long-term durability, even under heavy torque and constant load.
3. Brake Calipers and Rotors
As critical safety elements, these parts must handle intense friction and heat. Cast metals provide uniform strength and superior wear resistance, ensuring reliable braking performance and extended service life.
4. Suspension Brackets and Arms
Subjected to constant motion, vibration, and impact, cast suspension components combine high strength with reduced weight, improving vehicle handling, stability, and comfort across various road conditions.
5. Manifolds and Exhaust Housings
Operating in extreme heat and corrosive environments, these parts require exceptional thermal fatigue resistance. Casting enables the formation of intricate internal passages that optimize airflow and engine efficiency.
Every one of these components must endure stress, temperature fluctuations, and vibration without failure. That’s why casting remains an irreplaceable manufacturing process in automotive engineering—offering a perfect blend of precision, reliability, and cost efficiency that drives modern vehicle innovation.
4. Key Advantages of Precision Casting in Auto Manufacturing
- High dimensional accuracy for complex geometries
- Reduced material waste through optimized mold design
- Excellent repeatability for mass production
- Improved mechanical strength from controlled solidification
- Flexible material selection to meet varying performance needs
Casting supports lightweighting and innovation—critical for fuel-efficient and electric vehicles.
5. From Foundry to Finished Product: The Final Touch
The final stage of the casting process is where precision meets presentation. Once each part has successfully passed all quality inspections and performance tests, it moves into the finishing phase. Here, the cast components are carefully cleaned to remove any remaining residues from the production process, ensuring a smooth and flawless surface that meets exact engineering standards.
Next comes labeling and documentation — a critical step for traceability and accountability. Each part receives a unique identification mark and detailed production record, allowing manufacturers and customers to track its material source, batch number, and testing results. This system not only supports quality assurance but also builds confidence in the long-term reliability of every component.
Finally, the parts are expertly packaged and prepared for shipment. Protective packaging prevents damage during transport, while accompanying documentation confirms full compliance with specifications. At this point, what began as molten metal in the foundry has become a completed casting product — a true representation of precision engineering, advanced metallurgy, and skilled craftsmanship coming together in perfect harmony.
Conclusion: From Molten Metal to Automotive Excellence
The auto parts casting production process is the backbone of performance, safety, and sustainability in the automotive industry. Each completed product is the outcome of careful planning, advanced technology, and rigorous quality control.
For manufacturers seeking dependable, high-quality castings, partnering with an experienced supplier is essential. Besser combines industry expertise, modern equipment, and strict inspection to transform casting projects into reliable, production-ready components.
